Question about german fuze

[Latvian_Guy]

Once again , greetings

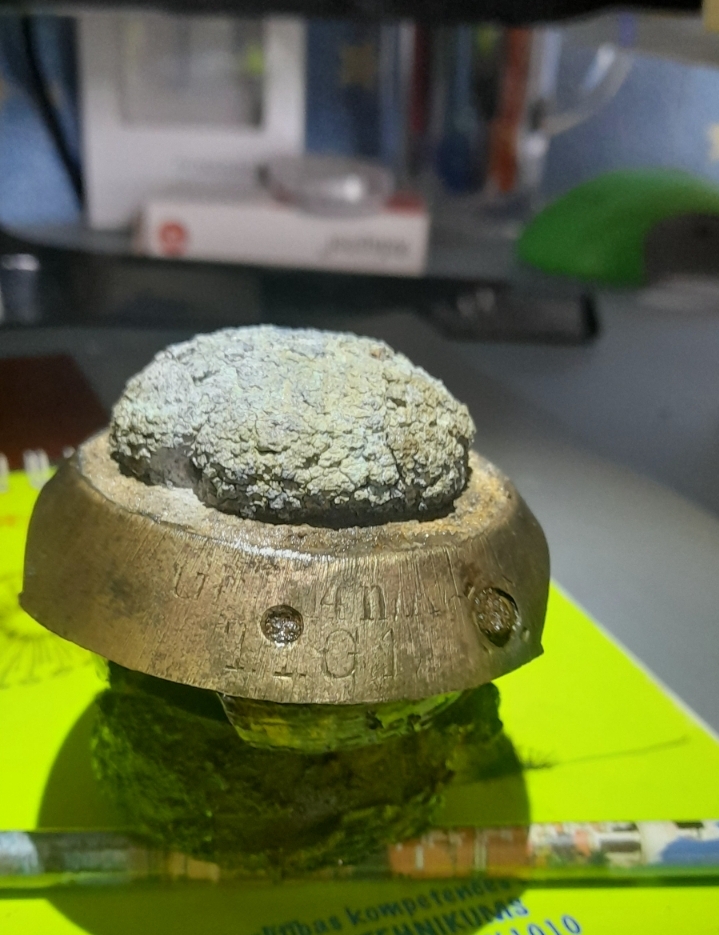

So recently i found this german Gr.z 14 N/a fuze☆ (T.T.G 17)
Nothing special , but the question is :

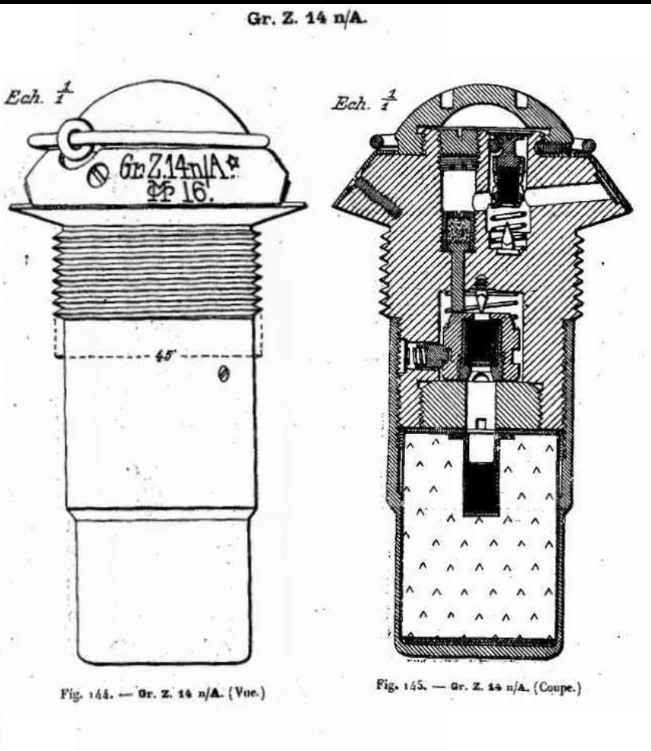

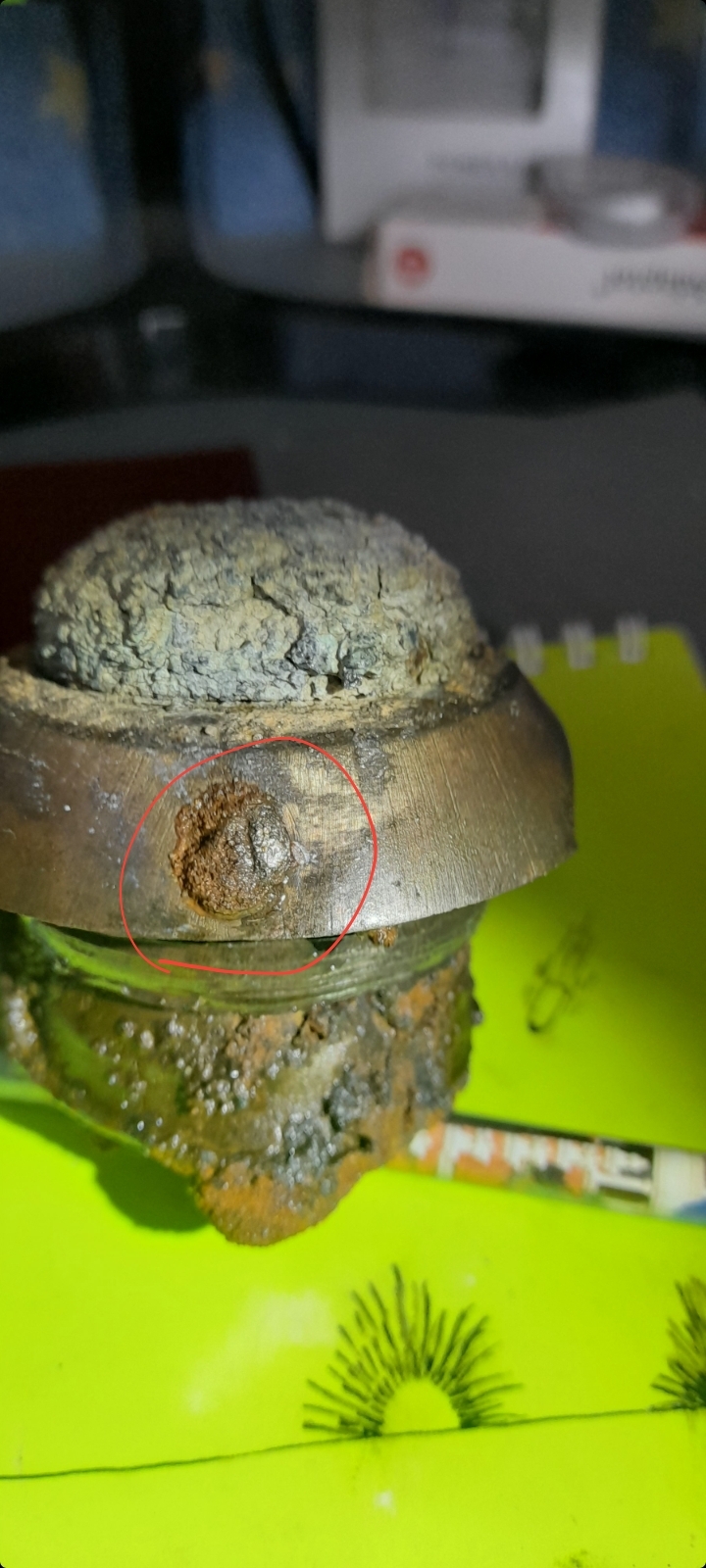

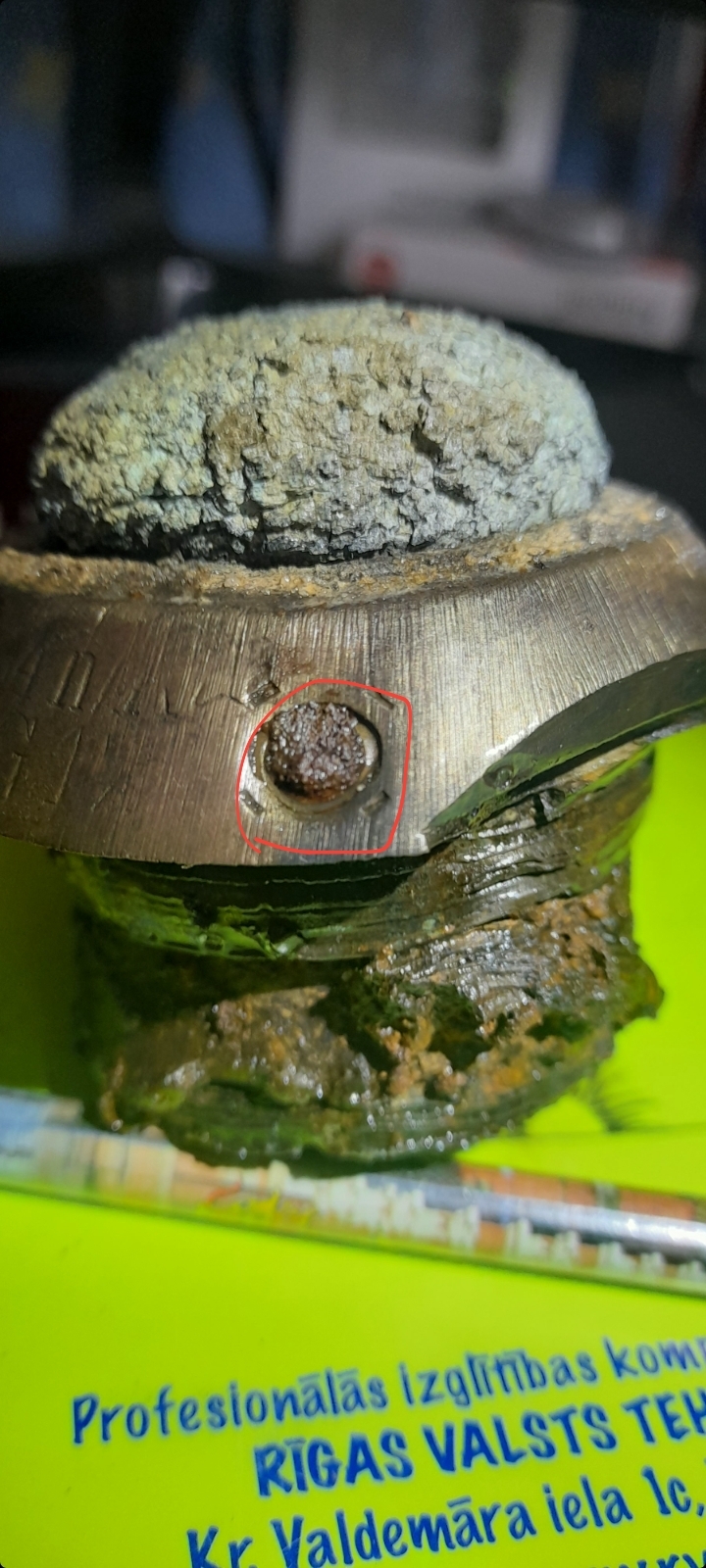

Whats the purpouse of this big back screw , wich cant be seen at the scheme , and why does the gas exsit hole have a screw in it?
I mean its obviously not a leftovers of the protection ring...

[humanbonb]

Hello,
The GrZ 14 n/A fuse has its tapered part initially covered by a steel plate fixed by 2 screws.
What you see are the remnants of that steel plate and the screws that held it together.

Initially on the GrZ14, there is an air groove at the level of the primer holder of the percussion system.
On the GrZ14 n/A, this air groove will be removed and applied to the tapered part of the fuse, hence the attachment of this steel plate on which the fusee's inscriptions are transcribed.

Sorry for my poor English.
I use google translation.


"La fusée GrZ 14 n/A a sa partie tronconique recouverte initialement par une plaque en acier fixée par 2 vis.
Ce que vous voyez, ce sont les restes de cette plaque en acier et des vis qui la maintenaient.

Initialement sur la GrZ 14, il y a une rainure d'air au niveau du porte-amorce du système percutant.
Sur la GrZ 14 n/A, cette rainure d'air sera supprimée et appliquée sur la partie tronconique de la fusée, d'où la fixation de cette plaque en acier sur laquelle sont retranscrites les inscriptions de la fusée.

Désolé pour mon anglais médiocre.
J'utilise Google Traduction."


Bonne soirée.
Bye.

[Latvian_Guy]

Thank you for responce.
It confirms that its just a regural fuze.
